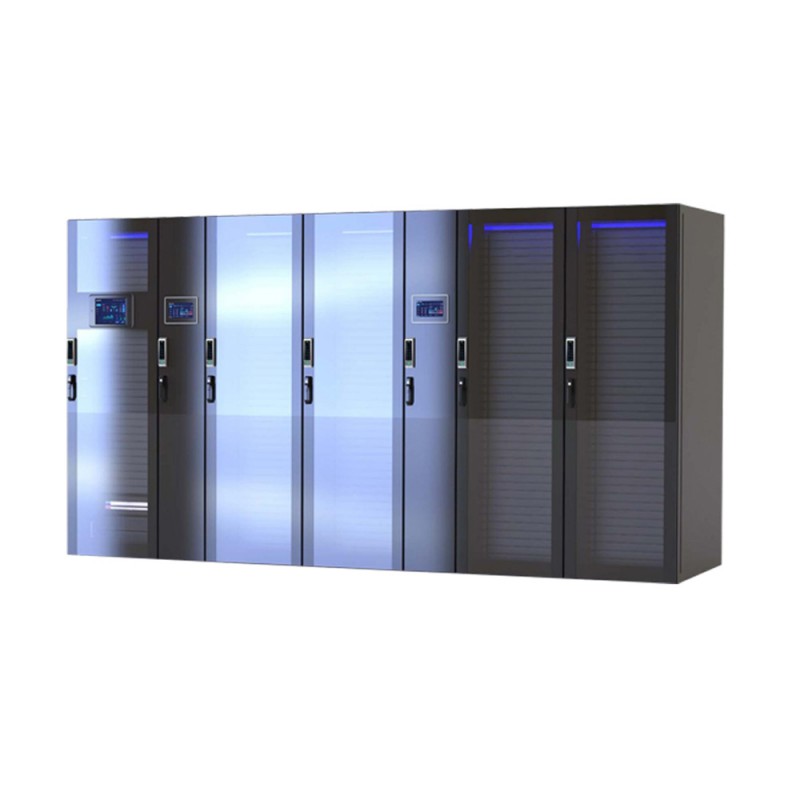

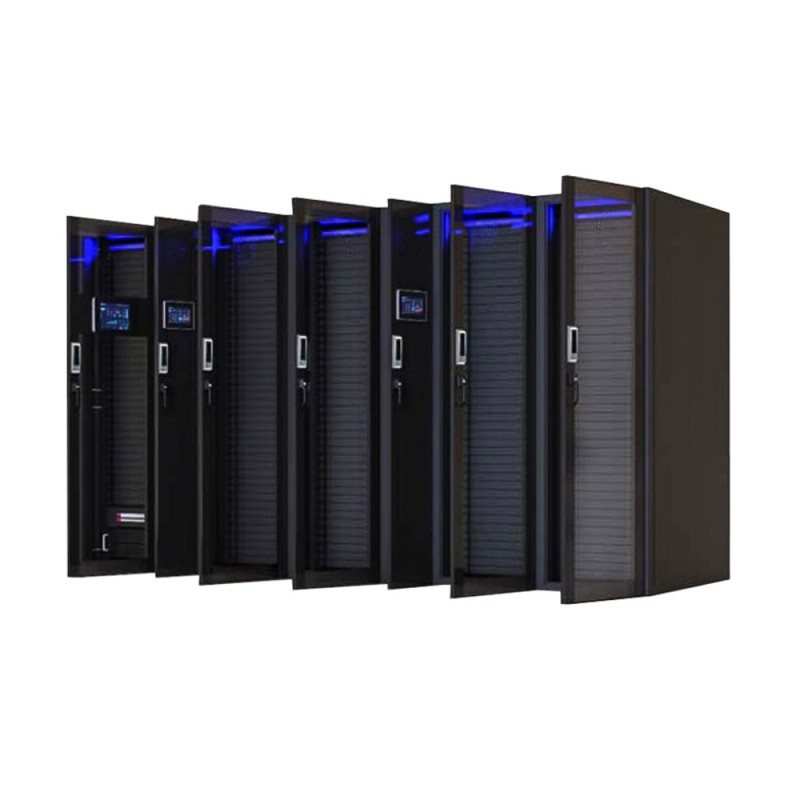

Single Row Modular Data Center

System Components （1）Air Conditioning System ● Rack-mounted Split Unit: 3.5kW, 7.5kW, 12.5kW ● Rack-mounted Integrated Unit: 3.5kW, 5kW ● Row-Level Units: 12.8kW, 21.2kW, 25.1kW, 31.1kW, 40.9kW, 51.2kW, 65.7kW （2）Cabinet System ● Cabinet Dimensions: Width: 600/800mm; Depth: 1200mm; ...

Send request

   

Description

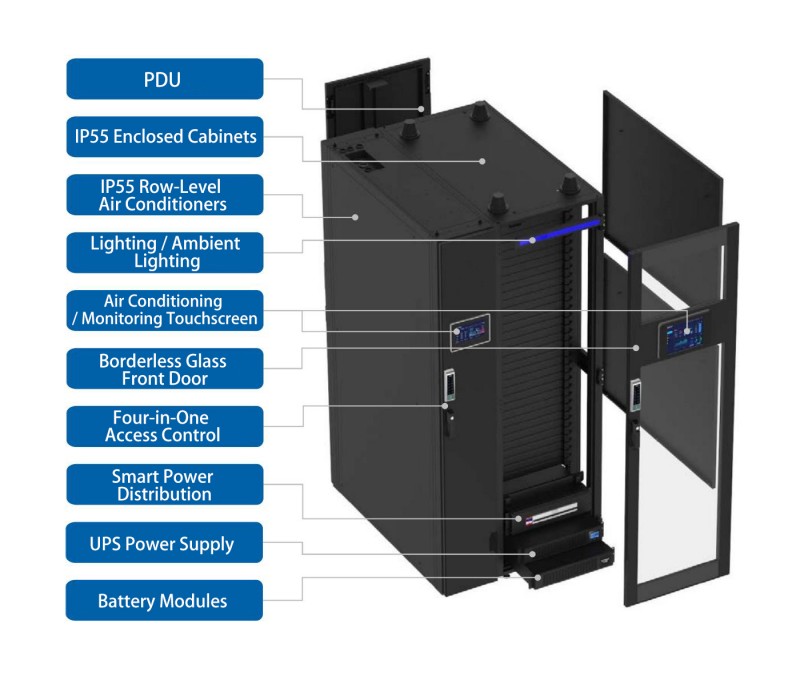

System Components

（1）Air Conditioning System

● Rack-mounted Split Unit: 3.5kW, 7.5kW, 12.5kW

● Rack-mounted Integrated Unit: 3.5kW, 5kW

● Row-Level Units: 12.8kW, 21.2kW, 25.1kW, 31.1kW, 40.9kW, 51.2kW, 65.7kW

（2）Cabinet System

● Cabinet Dimensions: Width: 600/800mm; Depth: 1200mm; Height: 2000mm

● Cabinet Access Control: Four-in-One Smart Access Control (Fingerprint + Password + ID Card + Mechanical Lock)

● Other Accessories: Ambient Lighting, Lighting, 1U Blank Panel, Shelf, L-shaped Rails, Cable Management Rack, Cable Ties, Top Cable Tray, IP55 Adaptation Components, etc.

（3）UPS Power Supply System

● UPS: Rack-mounted: 3~60kVA

● Modular UPS: 15~200kVA

● Batteries: Lead-acid Batteries, Lithium Batteries

● Power Distribution Module: Rack-mounted design, supports custom configurations, includes surge protection, monitoring

（4）Monitoring and Security

● Monitoring Sensors: Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact, Audio-Visual Alarms, SMS Alerts, Mobile App, Centralized Monitoring System

● Video Surveillance: Cameras, NVRs, and Hard Drives

● Fire Protection: Rack-mounted Gas Fire Extinguishing System

Typical Configuration

Technical Specifications Table
Model	6T	10T	20T	20S	30S	Customization
Cabinets	1	3	5	5	7	≤20
Power Density -kw/unit	3	3	3	4	4	≤20kw/unit
Redundancy Type	N	N	N	N	N+1	N/N+1/2N
Depth-mm	1200	1200	1200	1200	1200	Customizable to 1400
Width-mm	600	600	600	600	600	Optional 800
Height-mm	2000	2000	2000	2000	2000	Customizable to 2200 -47U
Power System
UPS -kVA	6	10	20	20	30+30	3~200
Total Input Power Specification	63A/1P 220V~50Hz	63A/3P 380V~50Hz	63A/3P 380V~50Hz	100A/3P 380V~50Hz	100A/3P 380V~50Hz	Customizable
Cooling System
Cooling Type	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling/Liquid Cooling
Cooling Capacity-kW	3.5	7.5	7.5+7.5	21.2	25+25	3.5~65
Cooling Type	Rack-mounted	Rack-mounted	Rack-mounted	Row-level	Row-level	Rack-mounted /Row-level
Management System
Environmental Monitoring System	UPS, Power Distribution, Precision Air Conditioning, 10-inch Touchscreen, Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact					Optional: Audio-Visual/ SMS Alerts, App, Centralized Monitoring, etc.
Security System	Four-in-One Access Control System					Optional: Video Surveillance, Fire Protection
