This comprehensive guide explores tubular heat exchangers, covering their types, applications, advantages, disadvantages, and selection criteria. Learn how to choose the optimal tubular heat exchanger for your specific needs, considering factors like efficiency, cost, and maintenance. We’ll delve into various designs and provide practical tips to aid in your decision-making process.

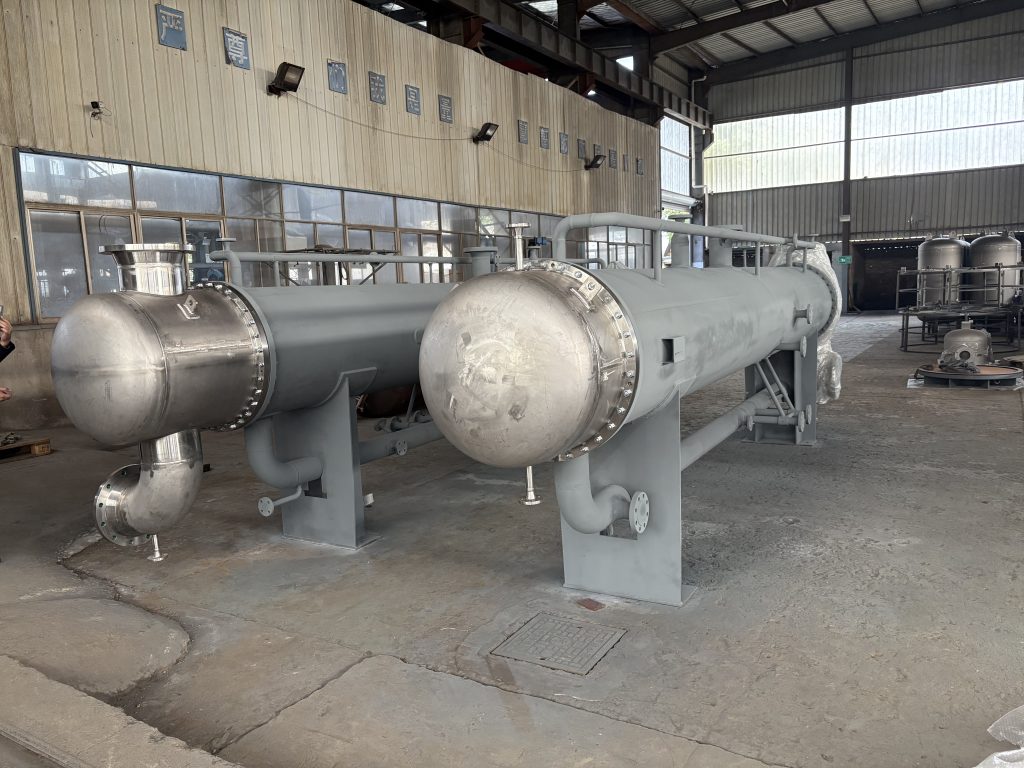

Shell and tube heat exchangers are the most common type of tubular heat exchanger. They consist of a bundle of tubes enclosed within a shell. The fluids flow through the tubes and the shell, exchanging heat. Different configurations, such as single-pass or multi-pass, are available depending on the required heat transfer rate and pressure drop. These exchangers are robust and can handle high pressures and temperatures, making them suitable for a wide range of industrial applications. Shanghai SHENGLIN M&E Technology Co.,Ltd offers a variety of high-quality shell and tube tubular heat exchangers.
In U-tube heat exchangers, the tubes are bent into a U-shape, simplifying cleaning and maintenance. The U-shape allows for thermal expansion and contraction, making them suitable for applications with significant temperature fluctuations. However, cleaning the tubes can be more challenging compared to straight-tube designs.
Double pipe heat exchangers are the simplest type of tubular heat exchanger, consisting of two concentric pipes. One fluid flows through the inner pipe, while the other flows through the annular space between the pipes. They are cost-effective and easy to maintain but offer lower heat transfer efficiency compared to more complex designs.
Choosing the right tubular heat exchanger requires careful consideration of several factors:
The required heat transfer rate is crucial in determining the size and type of tubular heat exchanger. This is typically calculated based on the flow rates, temperatures, and specific heat capacities of the fluids involved.
The operating pressure and temperature of the fluids significantly influence the material selection and design of the tubular heat exchanger. High-pressure and high-temperature applications require robust materials and specialized designs to ensure safe and reliable operation.
The physical properties of the fluids, such as viscosity, density, and fouling characteristics, also affect the tubular heat exchanger design and performance. Fouling, the accumulation of deposits on the heat transfer surfaces, can reduce efficiency and require more frequent cleaning.
The initial cost, operating costs, and maintenance requirements are all important factors to consider. While more complex designs may offer higher efficiency, they can also be more expensive to purchase and maintain.
The choice of material depends largely on the operating conditions and the fluids being handled. Common materials include stainless steel, carbon steel, copper, and titanium. Each material possesses different properties regarding corrosion resistance, thermal conductivity, and cost.
| Type | Advantages | Disadvantages |
|---|---|---|
| Shell and Tube | High heat transfer efficiency, robust construction, handles high pressure/temperature | Can be expensive, cleaning can be challenging |
| U-Tube | Easy to clean, accommodates thermal expansion | More complex design than double pipe |
| Double Pipe | Simple design, low cost, easy to maintain | Lower heat transfer efficiency than shell and tube |
Selecting the appropriate tubular heat exchanger is vital for efficient and reliable operation. By carefully considering the factors discussed above and consulting with experienced engineers, you can ensure optimal performance and longevity for your system. Remember to always consult with a qualified professional for specific design and application guidance. Contact Shanghai SHENGLIN M&E Technology Co.,Ltd for your tubular heat exchanger needs.
