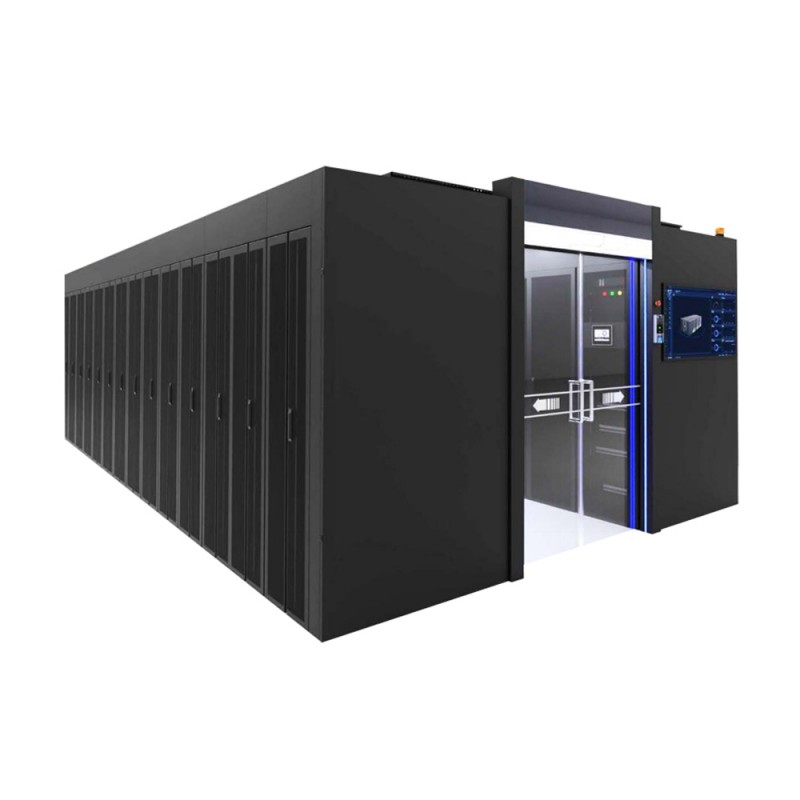

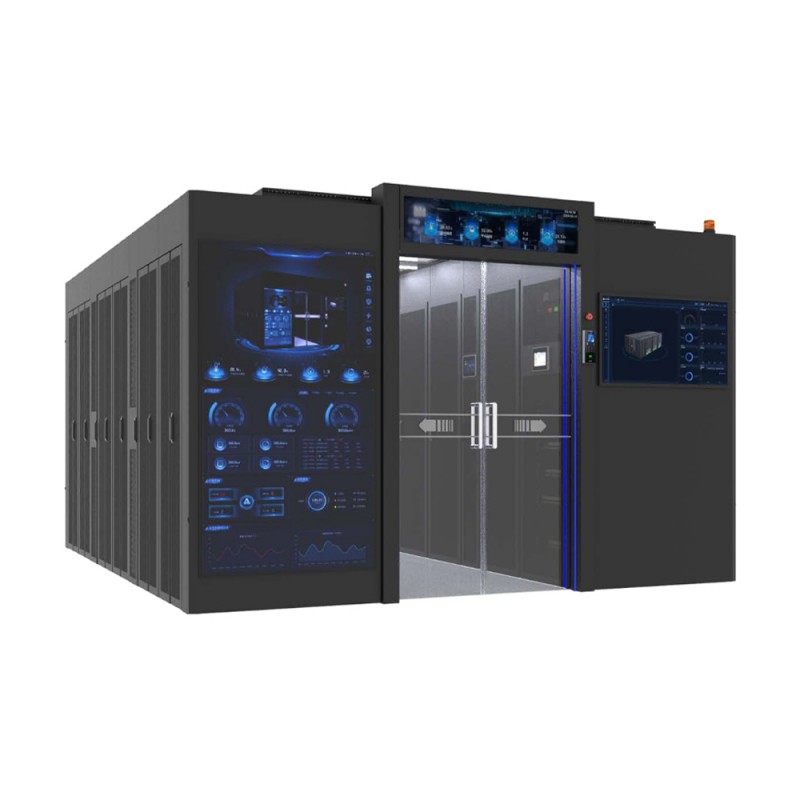

Modular Data Center

Introduction This solution is built around a micro-module data center concept, bringing together key infrastructure such as server racks, aisle containment, precision cooling, UPS and power distribution, environmental monitoring, and security protection. The modular design allows flexible conf...

Send request

   

Description

Introduction

This solution is built around a micro-module data center concept, bringing together key infrastructure such as server racks, aisle containment, precision cooling, UPS and power distribution, environmental monitoring, and security protection. The modular design allows flexible configuration based on customer needs—including power density, IT equipment scale, availability level, and PUE targets—delivering a reliable and scalable environment for IT operations.

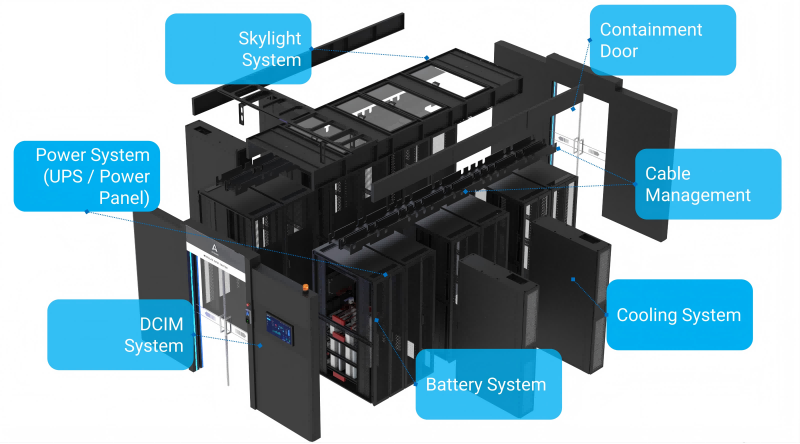

System Components

(1) Inrow Cooling Modules – Wide Capacity Range

● Capacity Range: 5–90 kVA
Provides more cooling options than most vendors in the market.

● Premium Components
Built with parts from leading global brands to ensure long-term reliability.

● High-Efficiency Green Cooling
– Inverter compressors, EC fans and eco-friendly refrigerants
– Intelligent control system
– Indirect pump-assisted free cooling for additional energy savings

● Customization Options
– Depth: 1100 / 1200 mm
– Front or side airflow discharge
– Adjustable air baffles

(2) Rack-Optimized UPS System for MDC

● Full Power Range: 3–600 kVA
– 230V1P | 400V3P: 3–200 kVA
– 240V2P | 208V3P: 6–150 kVA
– 480V3P: 80–400 kVA

● Rack-Ready Design
UPS modules from 3–200 kVA support direct rack installation.

● High-Efficiency Operation
– Up to 96% efficiency in online mode
– Up to 99% in ECO mode

● High Power Factor
Output PF up to 1.0 for maximum usable power.

(3) Intelligent Monitoring & Management

● Unified Monitoring Host
Centralized platform to manage access control and system monitoring.

● Display Options
10", 21" and 43" screen sizes depending on project needs.

● Comprehensive Monitoring
Includes power, cooling, temperature, humidity, leakage and access status.
Supports remote configuration via DCIM, such as cooling parameters and door control.

● Open Integration
Compatible with UPS, generators, cameras and other third-party equipment.
Supports integration into a central BMS.

(4) IT Rack System

● High Load Capacity
Reinforced frame supporting up to 1800 kg.

● Size Options
– Width: 600 / 800 mm
– Depth: 1100 / 1200 mm
– Height: 42U / 45U / 48U

● Access Control Options
– Mechanical key lock
– RFID electronic lock
– 3-in-1 smart lock
– Remote door opening and monitoring

● Rich Accessories
Includes side panels, blanking panels, brush strips, sealing kits and complete cable management (horizontal, vertical, top).

Typical Configuration

Model	Parameters
60R	Cabinets：14 units UPS：60kVA（kW） Cooling：51.2+51.2kW Power Distribution：250A/380V Redundancy：N+1
100R	Cabinets：22 units UPS：90kVA（kW） Cooling：25.1*（3+1）kW Power Distribution：320A/380V Redundancy：N+1
120R	Cabinets：28 units UPS：120kVA（kW） Cooling：40.9*（3+1）kW Power Distribution：400A/380V Redundancy：N+1
150R	Cabinets：36 units UPS：150kVA（kW） Cooling：25.1*（5+1）kW Power Distribution：500A/380V Redundancy：N+1
Customization	Cabinets：Less than 48 units UPS：≤500kVA（kW） Cooling：Customized on demand Power Distribution：Basic, Intelligent Redundancy：N/N+1/2N

Features

(1) Enhanced Energy Efficiency

● Indirect pump-assisted free cooling for improved performance.

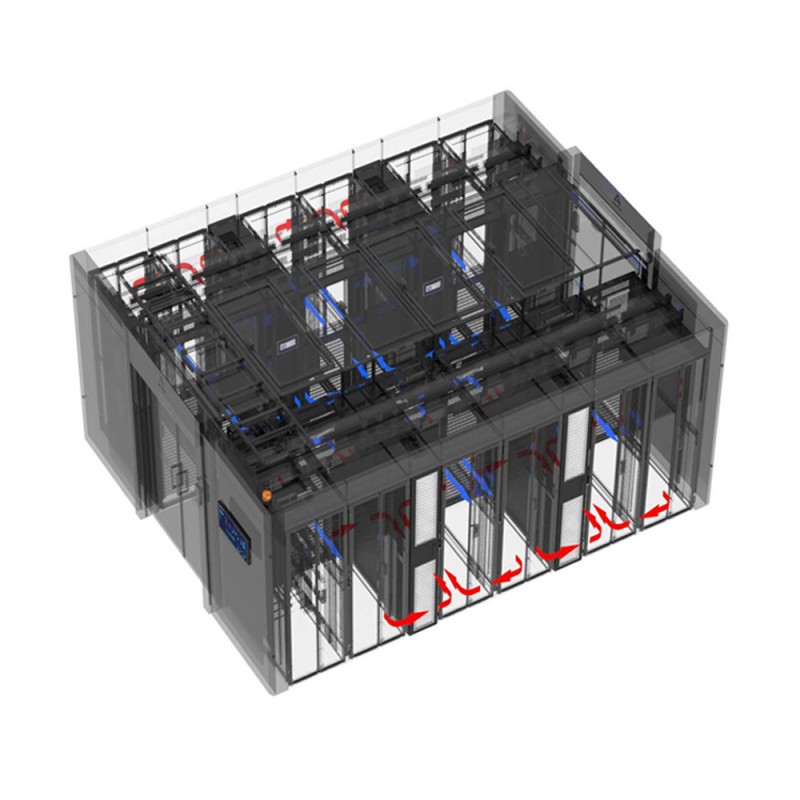

● Aisle containment reduces hot/cold air mixing and minimizes energy loss.

● High-efficiency components including inverter compressors, EC fans and green refrigerants.

● Real-time PUE monitoring.

● UPS supports ECO mode for additional energy savings.

(2) Standardized & Simplified Management

● Modular, LEGO-style design for quick replication and deployment.

● Local and remote monitoring for easy visualization and control.

● Real-time alarms and notifications for stable operation.

● Simplified procurement, installation and maintenance through pre-engineered designs.

(3) Integrated Security Protection

● Compatible with Uptime Tier I–IV design requirements.

● Secure access control for each door and rack.

● Automated fire-protection linkage with top panels and cooling units.

● Video surveillance with live view and recording backup.
