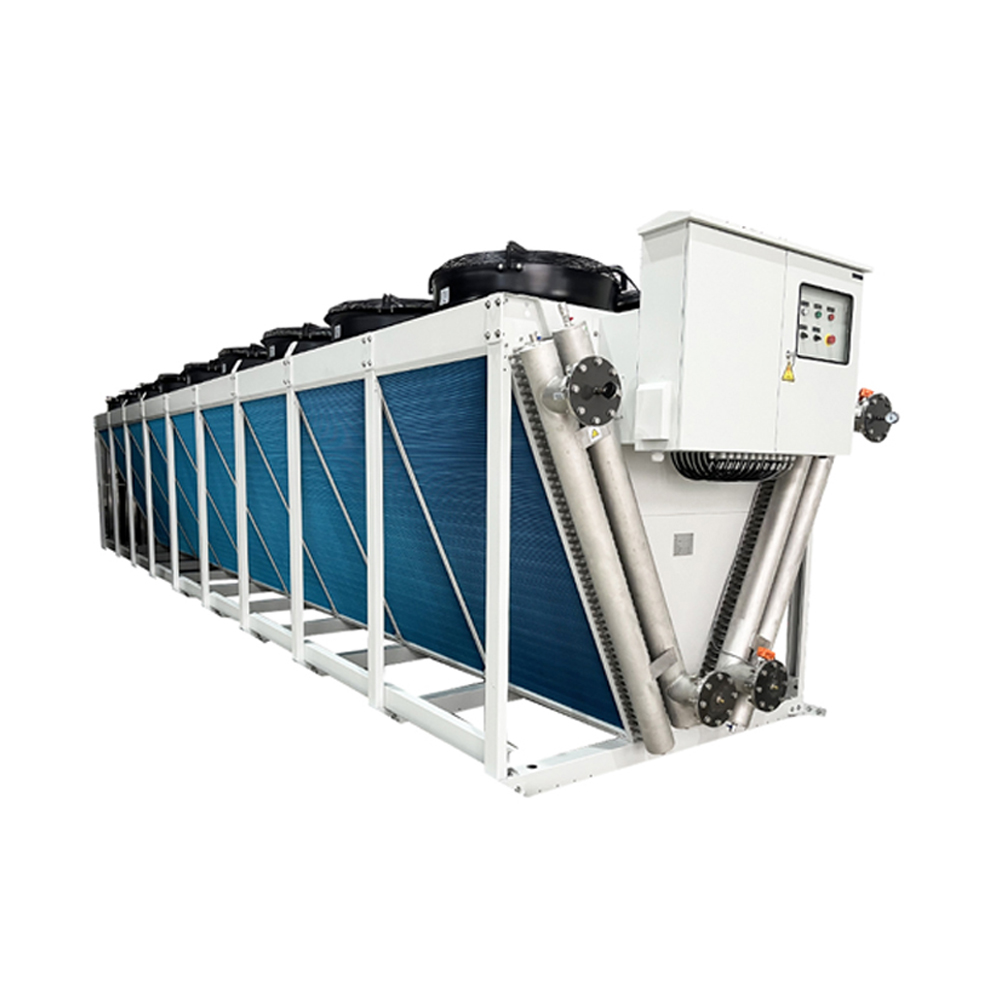

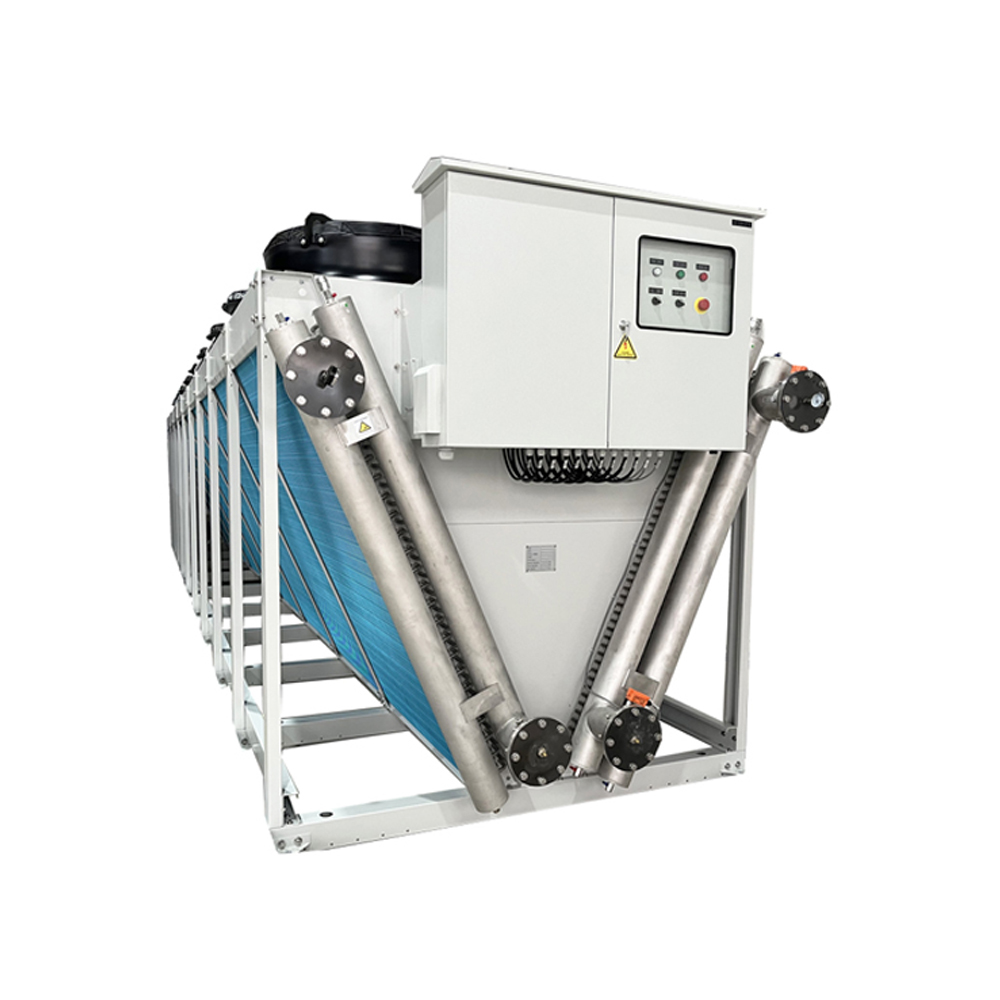

Features Air discharge direction Performance ranges Cooling capacity: from 148 to 921 kw Air volume: from 76459 to 351663 m3/h Sound pressure level: from 64 to 73 dB A(10m) Free cooler/dry coolers:customized on demand High efficiency heat exchanger Designs optimize heat transfer and mi...
| Air discharge direction |  |
| Performance ranges | Cooling capacity: from 148 to 921 kw Air volume: from 76459 to 351663 m3/h Sound pressure level: from 64 to 73 dB A(10m) Free cooler/dry coolers:customized on demand |
| High efficiency heat exchanger | Designs optimize heat transfer and minimize fan energy use. Low pressure drop (max 100 kPa at water conditions). Proven thermodynamic and aerodynamic software, tested in Germany. |
| Fan | Low-energy fans with optimized nozzles for airflow. Reliable, durable fans from a top manufacturer. Motor: IP 54, F insulation. Voltage: 400V/3N/50Hz. Air separator for each fan. |
| Testing | Heat exchangers are supplied clean and tested at a pressure of 30 bars |
| Options | Refrigerants: water, oil, glycol. Multiple and sub-cooling circuits. Stainless steel or aluminum casing. Coated aluminum or copper fins. Explosion-proof motor. Customizable fin spacing. |
Industries: process engineering, power plants, chemical, HVAC, smelting, and more. Ideal for outdoor equipment requiring heat dissipation.
