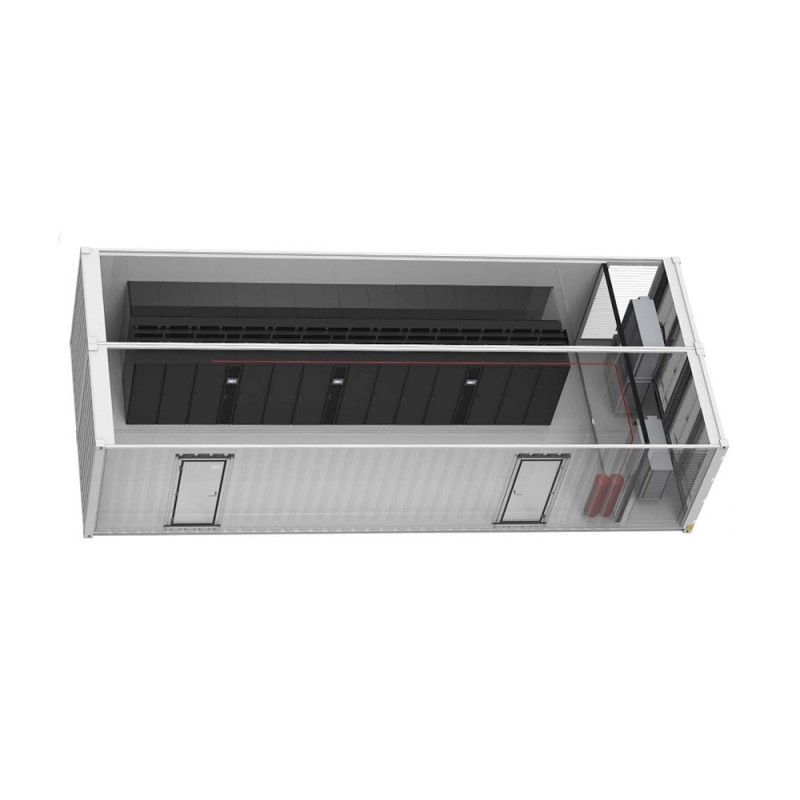

(1) Container Construction
● Fabricated to ISO container standards
● Salt spray resistance: 750 hours
● Rock wool thermal insulation
● Withstands wind speeds up to 30 m/s
● Fire resistance options up to 120 minutes
● Optional ballistic protection for high-security sites
● C5M corrosion-resistant coating for coastal environments
● IP55 dust and water protection
● Operating temperature: -40°C to +55°C
(2) Precision Cooling System
● 5–31.5 kW wall-mounted cooling (standard)
● 6–90 kW in-row cooling options
● 5–122.9 kW room cooling options
● Suitable for ambient temperatures up to 55°C
● Various free-cooling configurations available
(3) IT Rack System
● 1800 kg static load capacity
● 600/800 mm width; 1100/1200 mm depth options
● Optional hot/cold aisle containment
● Sliding front/rear rails for easier maintenance
● Optional access control for enhanced security
(4) UPS Power System
● 3–60 kVA rack-mounted UPS
● 60–200 kVA modular UPS (rack mount)
● 250–600 kVA modular UPS (floor mount)
● 48 VDC rectifiers (60 A–1200 A)
● VRLA or lithium-ion battery configurations
● Basic or smart PDU options
● Built-in power distribution tailored for Tier I–IV uptime levels
(5) DCIM System
● Unified communication with UPS, cooling, power modules, and sensors
● Integrated access control
● Integrated video surveillance
● Local touchscreen interface (10/21/42 inch)
● Remote access via web, SMS, email, Modbus-TCP; optional SNMP
(6) Access Control System
● IP55 three-in-one access method: PIN code / password / fingerprint
● Independent software management
● Fully integrated with DCIM platform
(7) Fire Protection System
● Early-warning fire detection
● Intelligent fire panel for simplified management
● Fire suppression agent options: Novec 1230 or FM200
Multiple Protective Cabinet Design
● Water-resistant and moisture-proof
● Salt spray protection
● Mold prevention
● Fire and thermal insulation
● Seismic protection
● Anti-theft and explosion-resistant capability
